特征

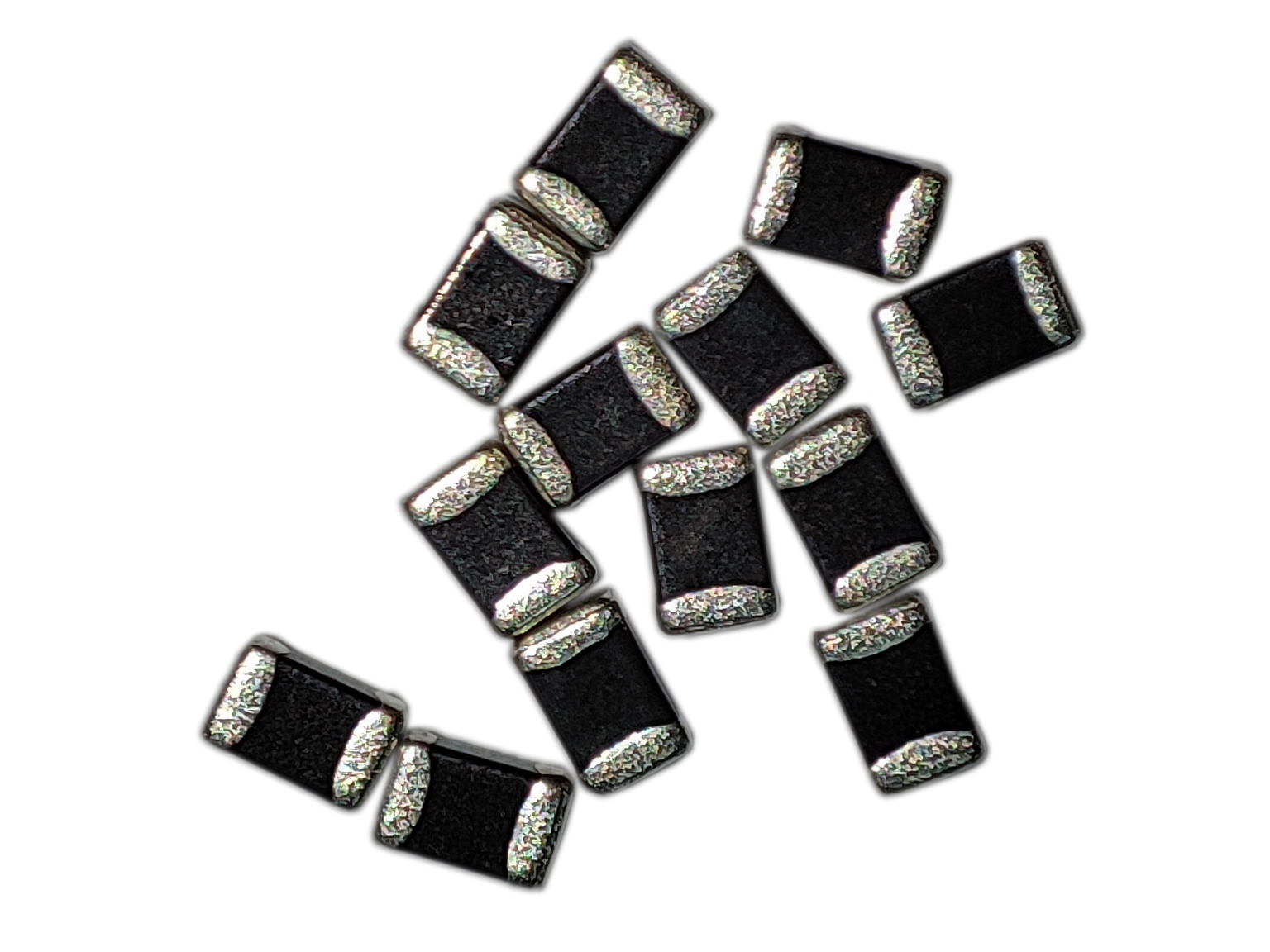

0805小尺寸，无铅，焊接性能优异
适用于高密度表面贴装
- 高精度的电阻值和B值常数
- 符合ROHS标准的
应用
温度测量仪
手机，笔记本电脑
智能可穿戴设备、移动通信设备
| P/N | B Resistance (25℃)(kΩ) |
B Constant (25/50℃)(K) |
B Constant (25/85℃)(K) |
Permissible Operating Current(25℃) |
Dissipation Factor (mW/℃) |
Thermal Time Constant (s) |
Rated Electric Power (25℃)(mW) |
Operating ambient temperature (℃) |
规格书 |
| TNP474J3950FBT | 470±5% | 3950±1% | 3987 | 0.05mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP334J3950FBT | 330±5% | 3950±1% | 3987 | 0.07mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP224J3950FBT | 220±5% | 3950±1% | 3987 | 0.08mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP154J4250FBT | 150±5% | 4250±1% | 4310 | 0.11mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP104J4250FBT | 100±5% | 4250±1% | 4310 | 0.14mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP104J3950FBT | 100±5% | 3950±1% | 3987 | 0.14mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP683J4150FBT | 68±5% | 4150±1% | 4210 | 0.16mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP473J4050FBT | 47±5% | 4050±1% | 4100 | 0.20mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP333J4050FBT | 33±5% | 4050±1% | 4100 | 0.24mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP223J3950FBT | 22±5% | 3950±1% | 3987 | 0.30mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP103J3950FBT | 10±5% | 3950±1% | 3987 | 0.44mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP103J3450FBT | 10±5% | 3450±1% | 3500 | 0.44mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP103J3435FAT | 10±5% | 3380±1% | 3435±1% | 0.44mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP104H4250FBT | 100±3% | 4250±1% | 4310 | 0.14mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP104H3950FBT | 100±3% | 3950±1% | 3987 | 0.14mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP683H4150FBT | 68±3% | 4150±1% | 4210 | 0.16mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP473H4050FBT | 47±3% | 4050±1% | 4100 | 0.20mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP333H4050FBT | 33±3% | 4050±1% | 4100 | 0.24mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP223H3950FBT | 22±3% | 3950±1% | 3987 | 0.30mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP103H3950FBT | 10±3% | 3950±1% | 3987 | 0.44mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP103H3450FBT | 10±3% | 3450±1% | 3500 | 0.44mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP103H3435FAT | 10±3% | 3380±1% | 3435±1% | 0.44mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP104F4250FBT | 100±1% | 4250±1% | 4310 | 0.14mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP104F3950FBT | 100±1% | 3950±1% | 3987 | 0.14mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP683F4150FBT | 68±1% | 4150±1% | 4210 | 0.16mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP473F4050FBT | 47±1% | 4050±1% | 4100 | 0.20mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP333F4050FBT | 33±1% | 4050±1% | 4100 | 0.24mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP223F3950FBT | 22±1% | 3950±1% | 3987 | 0.30mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP103F3950FBT | 10±1% | 3950±1% | 3987 | 0.44mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP103F3450FBT | 10±1% | 3450±1% | 3500 | 0.44mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
| TNP103F3435FAT | 10±1% | 3380±1% | 3435±1% | 0.44mA | 1.0 | <5 | 100 | -40~+125 | 下载 |
