特征

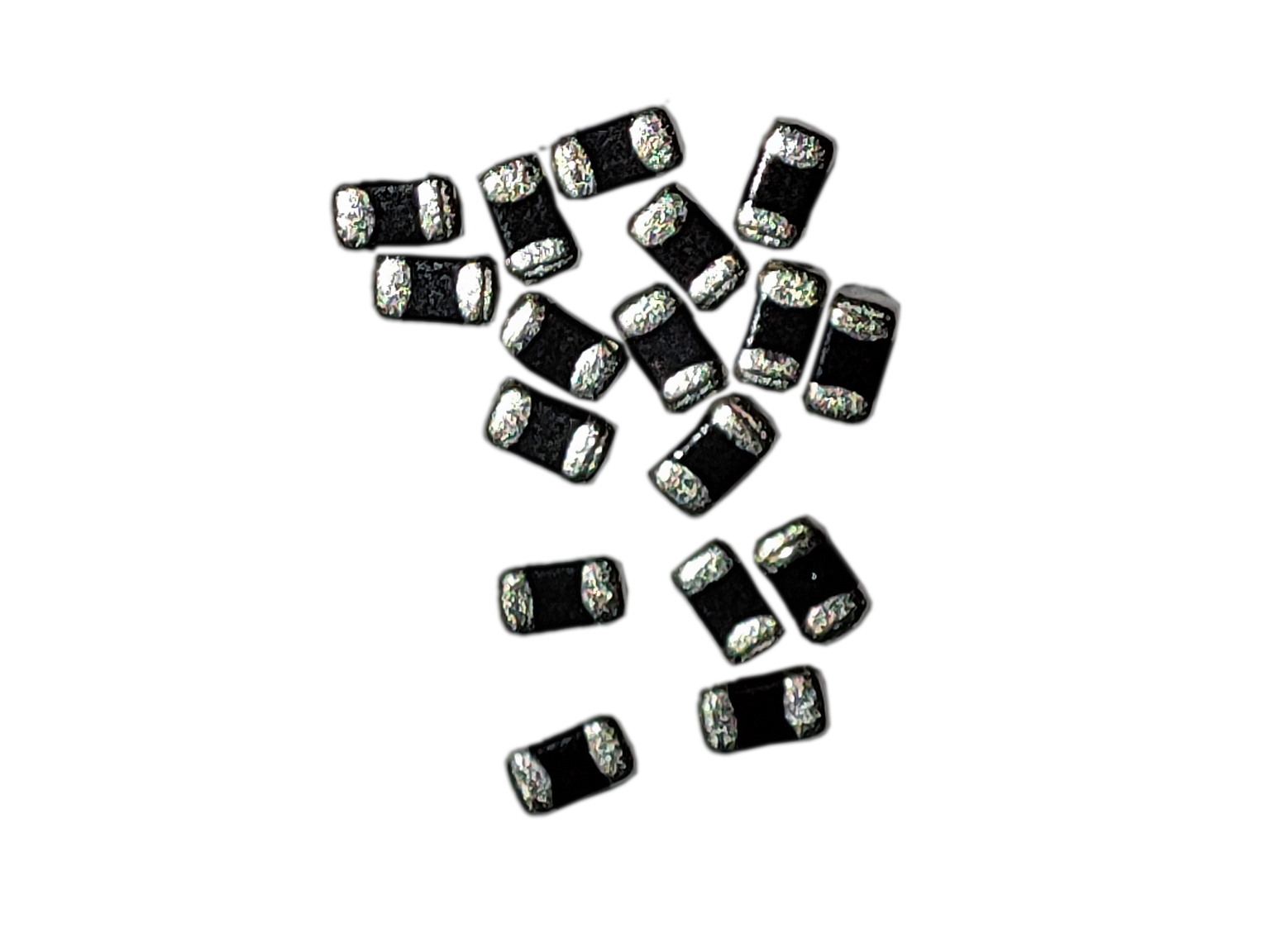

0402小尺寸，无铅，焊接性能优异
适用于高密度表面贴装
- 高精度的电阻值和B值常数
- 符合ROHS标准的
应用
温度测量仪
手机，笔记本电脑
智能可穿戴设备、移动通信设备
| P/N | B Resistance (25℃)(kΩ) |
B Constant (25/50℃)(K) |
B Constant (25/85℃)(K) |
Permissible Operating Current(25℃) |
Dissipation Factor (mW/℃) |
Thermal Time Constant (s) |
Rated Electric Power (25℃)(mW) |
Operating ambient temperature (℃) |
规格书 |
| TNA474J4050FAT | 474±5% | 4000±1% | 4050±1% | 0.04mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA104J4250FBT | 100±5% | 4250±1% | 4310 | 0.10mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA104J3950FBT | 100±5% | 3950±1% | 3987 | 0.10mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA683J4150FBT | 68±5% | 4150±1% | 4210 | 0.12mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA473J4050FBT | 47±5% | 4050±1% | 4100 | 0.14mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA333J4050FBT | 33±5% | 4050±1% | 4100 | 0.17mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA223J3950FBT | 22±5% | 3950±1% | 3987 | 0.21mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA103J3950FBT | 10±5% | 3950±1% | 3987 | 0.31mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA103J3450FBT | 10±5% | 3450±1% | 3500 | 0.31mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA103J3435FAT | 10±5% | 3380±1% | 3435±1% | 0.31mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA104H4250FBT | 100±3% | 4250±1% | 4310 | 0.10mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA104H3950FBT | 100±3% | 3950±1% | 3987 | 0.10mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA683H4150FBT | 68±3% | 4150±1% | 4210 | 0.12mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA473H4050FBT | 47±3% | 4050±1% | 4100 | 0.14mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA333H4050FBT | 33±3% | 4050±1% | 4100 | 0.17mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA223H3950FBT | 22±3% | 3950±1% | 3987 | 0.21mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA103H3950FBT | 10±3% | 3950±1% | 3987 | 0.31mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA103H3450FBT | 10±3% | 3450±1% | 3500 | 0.31mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA103H3435FAT | 10±3% | 3380±1% | 3435±1% | 0.31mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA474F4050FAT | 470±1% | 4000±1% | 4050±1% | 0.04mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA104F4250FBT | 100±1% | 4250±1% | 4310 | 0.10mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA104F3950FBT | 100±1% | 3950±1% | 3987 | 0.10mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA683F4150FBT | 68±1% | 4150±1% | 4210 | 0.12mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA473F4050FBT | 47±1% | 4050±1% | 4100 | 0.14mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA333F4050FBT | 33±1% | 4050±1% | 4100 | 0.17mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA223F3950FBT | 22±1% | 3950±1% | 3987 | 0.21mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA103F3950FBT | 10±1% | 3950±1% | 3987 | 0.31mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA103F3450FBT | 10±1% | 3450±1% | 3500 | 0.31mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
| TNA103F3435FAT | 10±1% | 3380±1% | 3435±1% | 0.31mA | 1.0 | <3 | 100 | -40~+125 | 下载 |
